Electric-Engineering Material Division
Electro-engineering material division focus on supplying the material, consumptive material and equipment for chip resistor.

Such as the following items below:
1. Metal alloy material: Mn wire, Cu wire, Mn/Zn/Ni wire and Mn/Cu/Sn wire are made for micro chip resistor.
2. Ceramic chip resistor material: conductive ink for front side and rear side, and protective ink.
3. Ceramic chip resistor equipment: laser ablation machine.

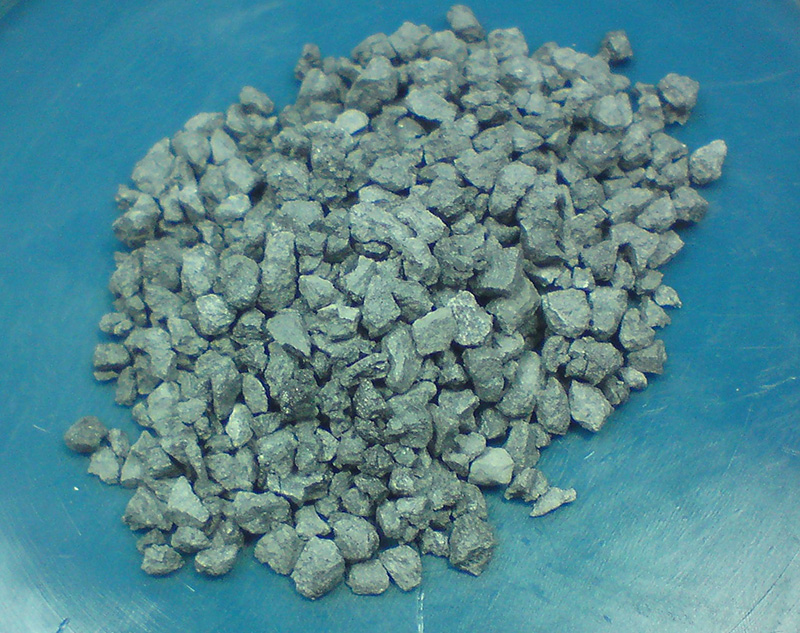

Metal alloy material

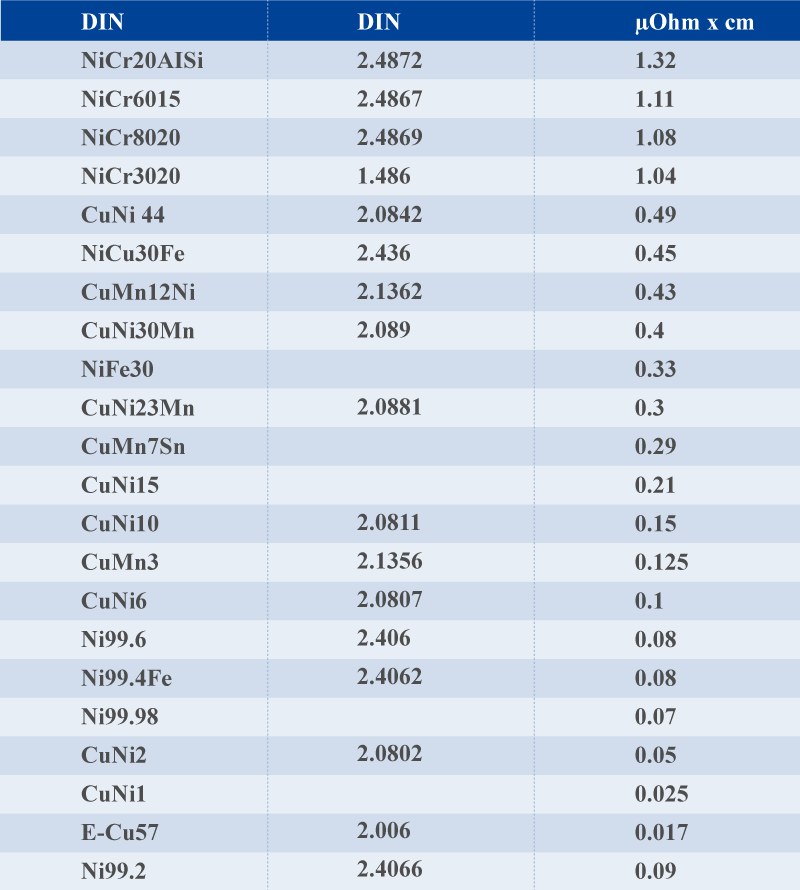

Mn/Cu, Cu/Ni, Mn/Ni/Zn and Mn/Cu/Sn alloys are made for micro ohm chip resistor.

【Downloads:Metal alloy material】

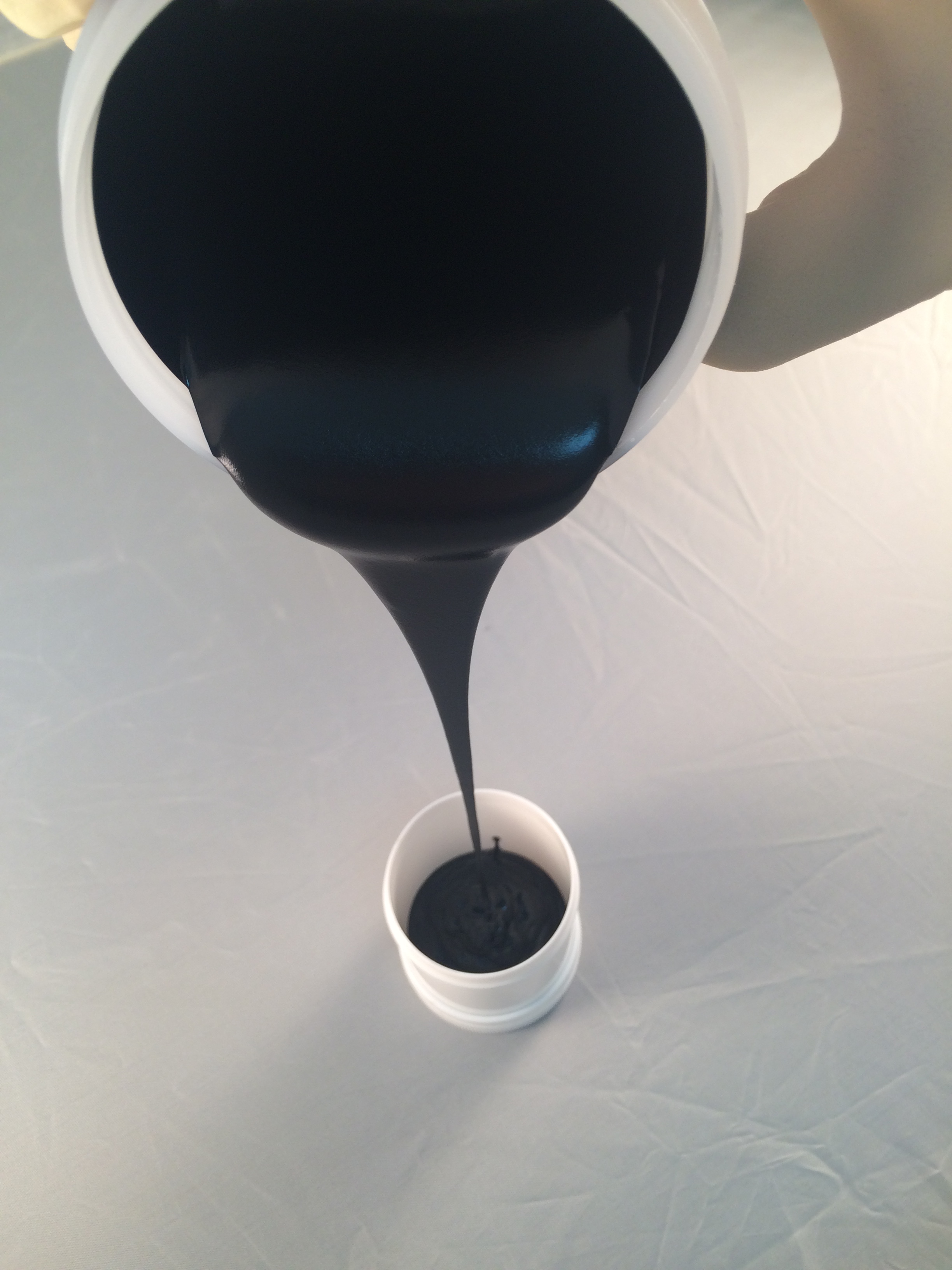

Chip resistor protective overcoat ink

A protective ink sets as G2 overcoat in chip resistor. This ink gives excellent printing and moisture resistance.

【Downloads:The specification of chip resistor overcoat paste】

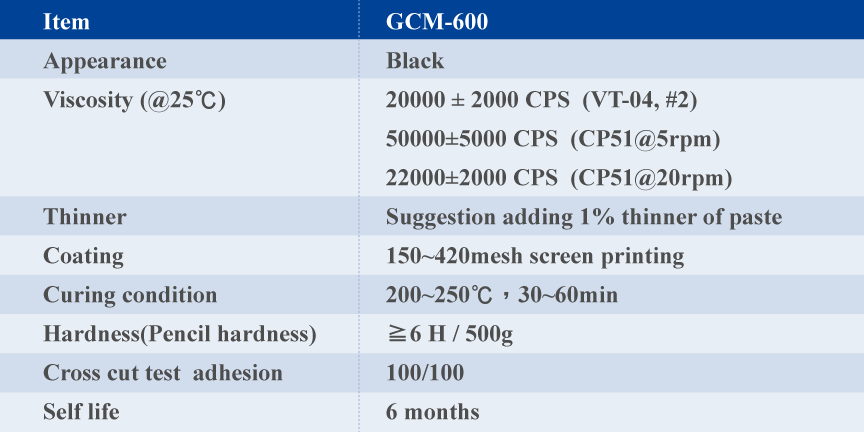

●   Technical Information


 The figures are typical and not to be used for specification purposes. Copies of these test procedures can be obtained upon request.
Feature:
For one solvent type printing screen.2 Customize different colors. Good heat stability and solder heat resistance. 4.Low odor, fast curing process. Printing ratio 100/100 (L/S) .

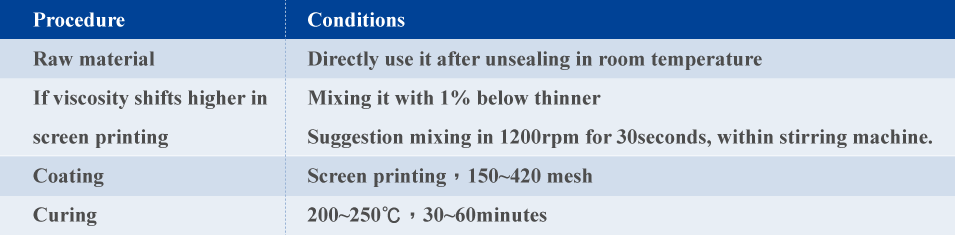

●   Reference procedure

 The figures are typical and not to be used for specification purposes. Copies of these test procedures can be obtained upon request.

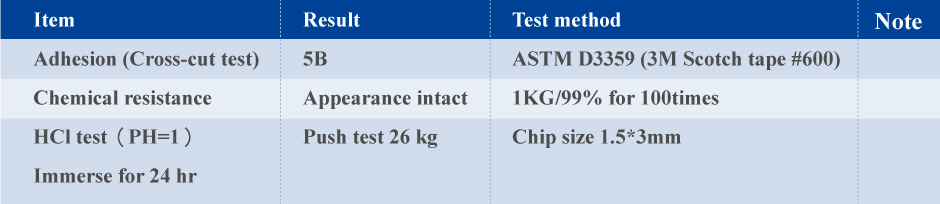

●   Before curing

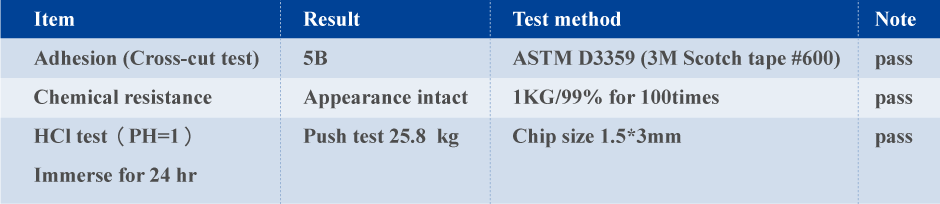

●   After curing(85℃/85RH 168 hr)
