Substrate Material Division
Supply related materials for substrate manufacturing and supply 3M Industrial adhesives and tapes
For Example:
-Solder Anisotropic Conductive Paste for connecting and conducting
-White solder resist ink for increasing reflectivity of light bar
-Adhesive for the lens.

The process used to test the tape

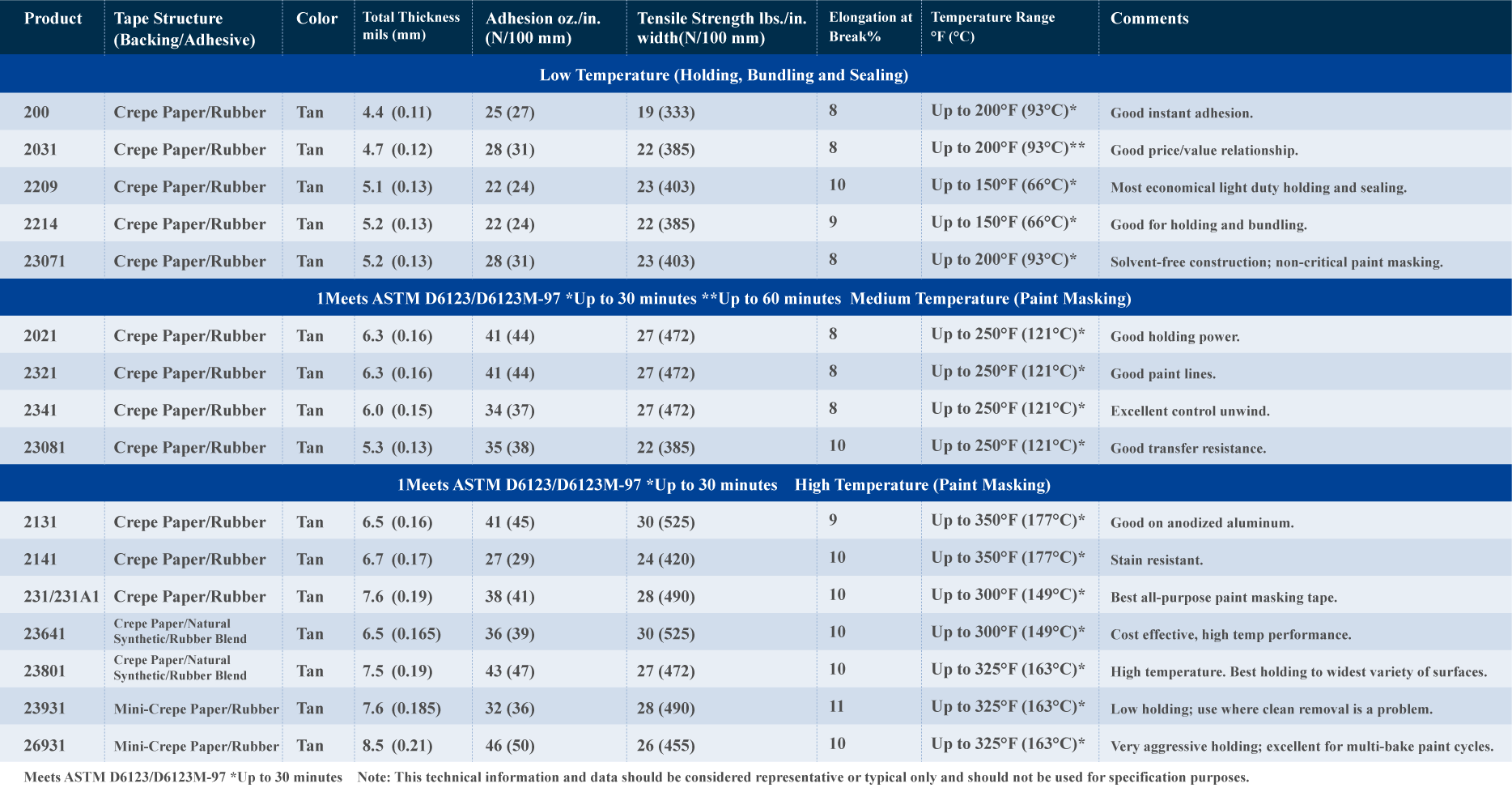

-3M masking tape for substrate manufacture shielding
-3M special single-sided tape for the industry
-3M VHB (double-sided tape) for the industry
-3M filament tape for packaging
【Contact】
Vic Chen
【TEL】
02-2719-3456 Ext. 381
【EMAIL】
Vic@gredmann.com

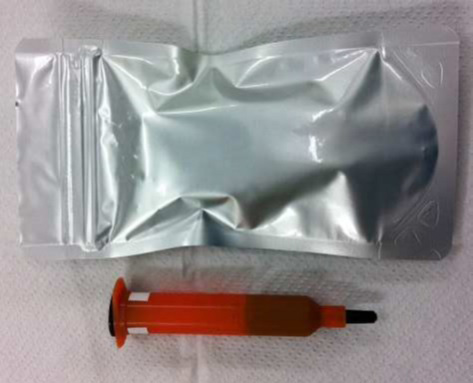

Solder Anisotropic Conductive Paste

SEKISUI SACP can be used to replace connector、ACF、Rigid-flex board.

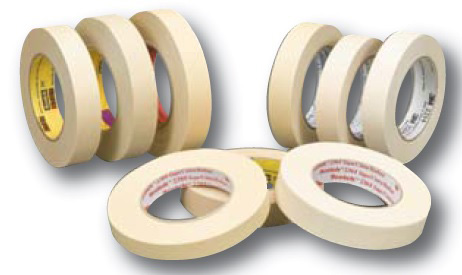

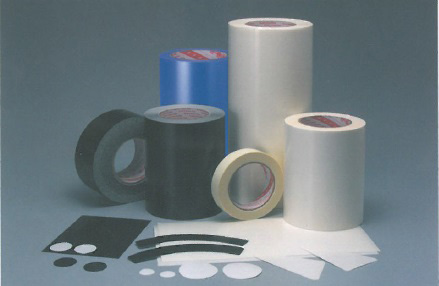

Industrial single-sided Tape

Special single-sided tape including masking tape, duct tape, PVC tape, PE tape, PTFE tape, metal foil tape, filament tape, protective film, water soluble tape.

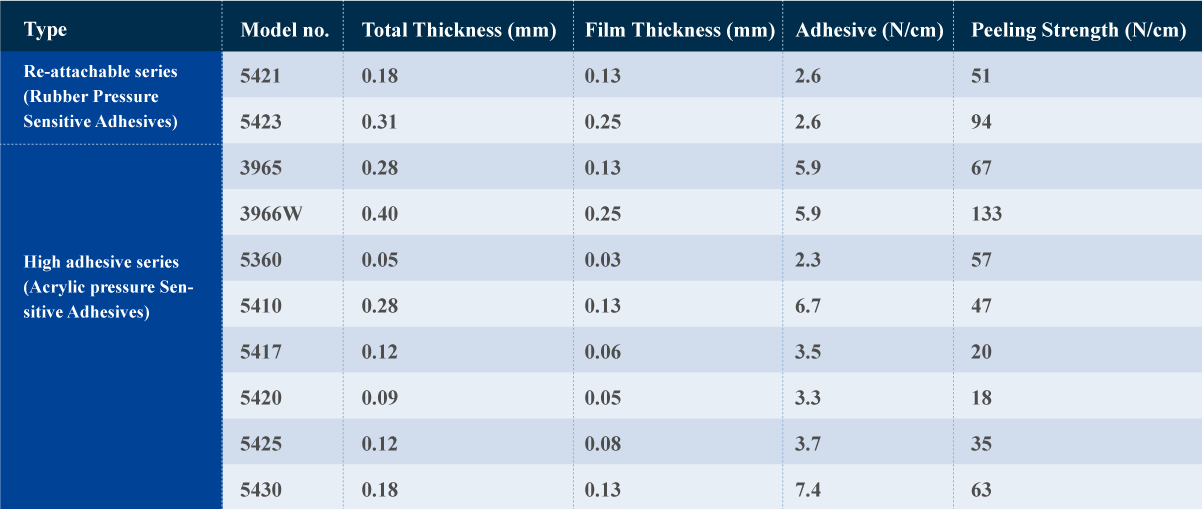

UHMW Tape

Very low friction coefficient - low friction coefficient after fluorine resin, can be self-lubricating Abrasion resistance - chronically maintain smoothness, low friction, strong resistance, impact resistance Low surface energy substrates - easily release, not easy to attach to other substances Diversity choices - according to the different requirements of thicknesses and adhesive properties,3M designed variety of products for customers to choose.

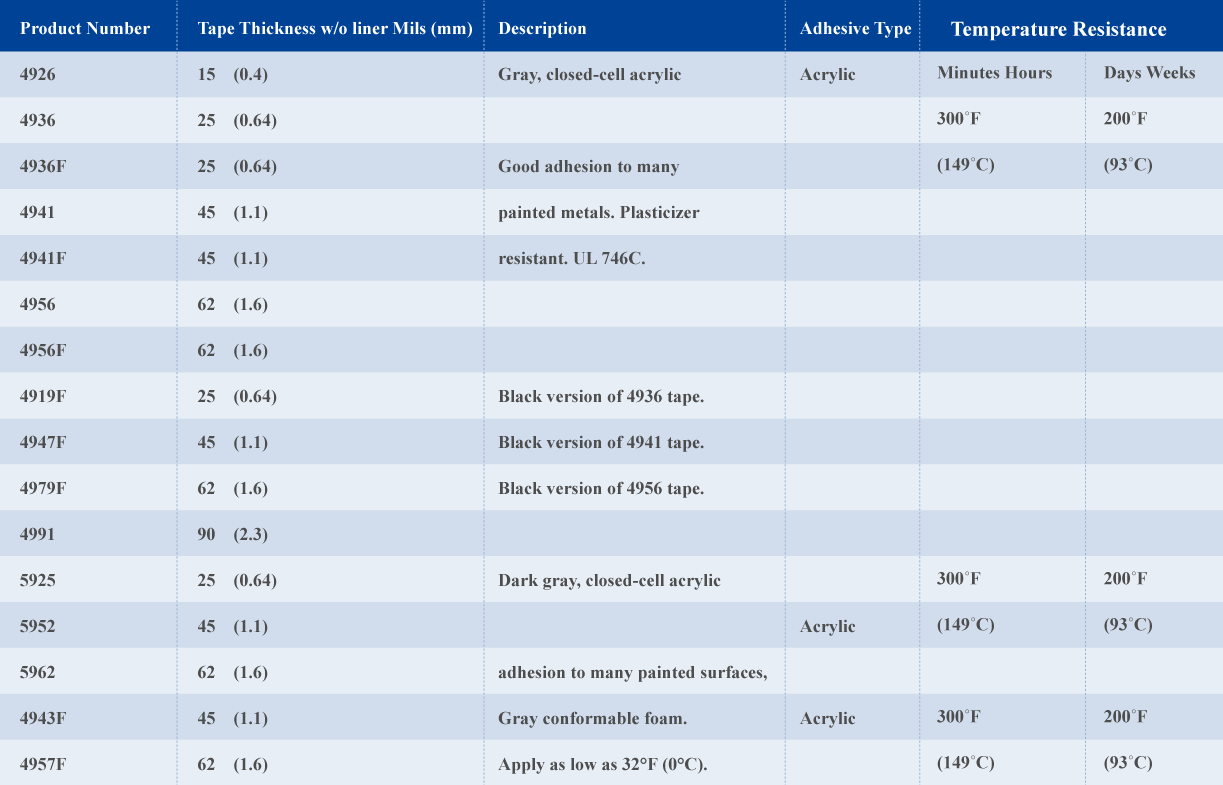

VHB

Great adaptability, can be widely used in a variety of materials, thickness, color, and can meet the diverse needs.

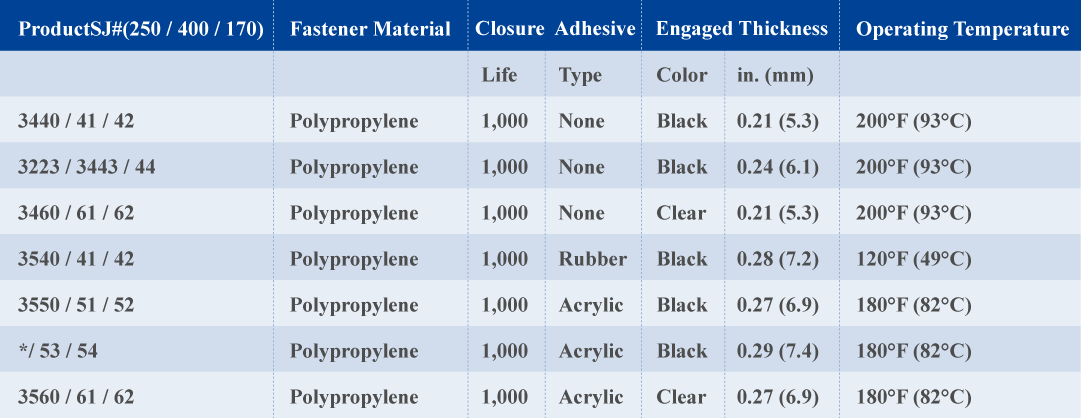

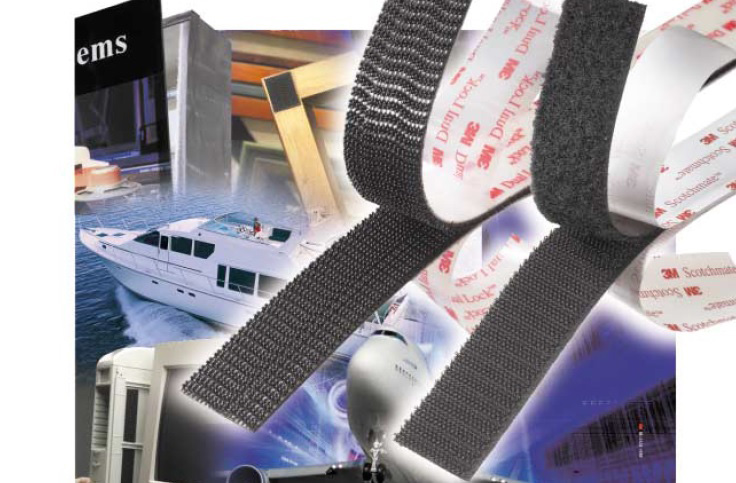

Dual Lock™ Reclosable Fasteners

3M ™ Dual Lock ™ reclosable fastener series products can be hidden strength and easily peel apart to access doors, panels, signs and display components. Patented mushroom-shaped stems design replaces unsightly mechanical fasteners to enhance design appearance. In order to meet diverse application requirements, it can be matched with different adhesives.

Series Products:
Adhesive free 3M ™ Dual Lock ™ reclosable fastener
VHB 3M ™ Dual Lock ™ reclosable fastener
Thin sticky 3M ™ Dual Lock ™ reclosable fastener

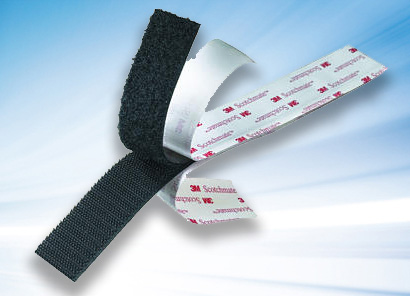

Scotchmate™ Hook and Loop

3M™ Scotchmate™ Hook and Loop Series
When the product needs to be opened thousand times, 3M ™ Scotchmate ™ Hook and Loop is your best choice. Combination of small but tough hook and soft matte surface becomes an easy but solid hook and loop products, which can add the value to your products and reduce man-hours and costs. In order to meet diverse application requirements, it can be matched with different adhesives.

Series Products:
Adhesive free 3M ™ Scotchmate ™ Hook and Loop
Adhesive 3M ™ Scotchmate ™ Hook and Loop
Thin sticky 3M ™ Scotchmate ™ Hook and Loop

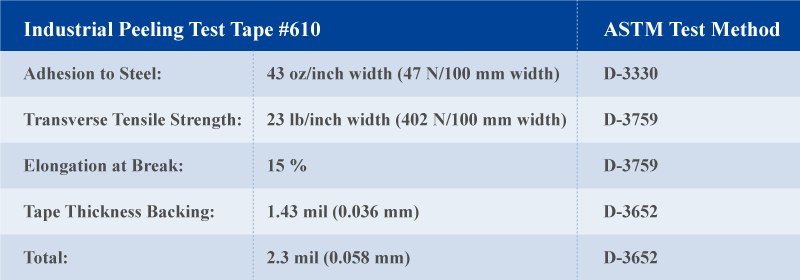

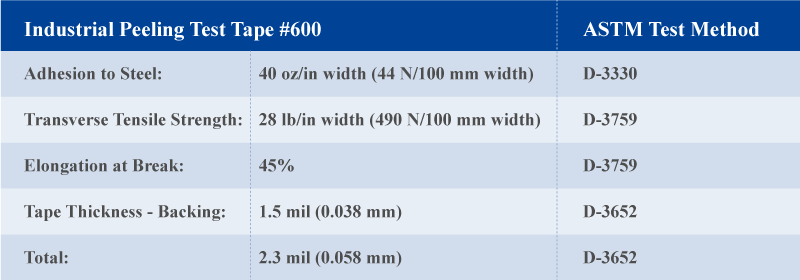

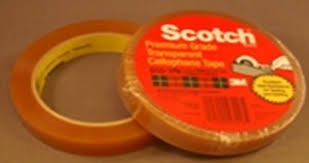

Industrial Peeling Test Tape

Feature: recommended by the world association of printed circuit boards (IPC) and conform to the specification of CID AA-113 Type 1, Class B. Applicable scope: Adhesion Cross-Cut Test




Import
Materials used in Optoelectronic, Semiconductor, Electronic, Electric-Engineering and Solar;Import and Triangular Trade of Metal / Alloy and Inorganic materials
